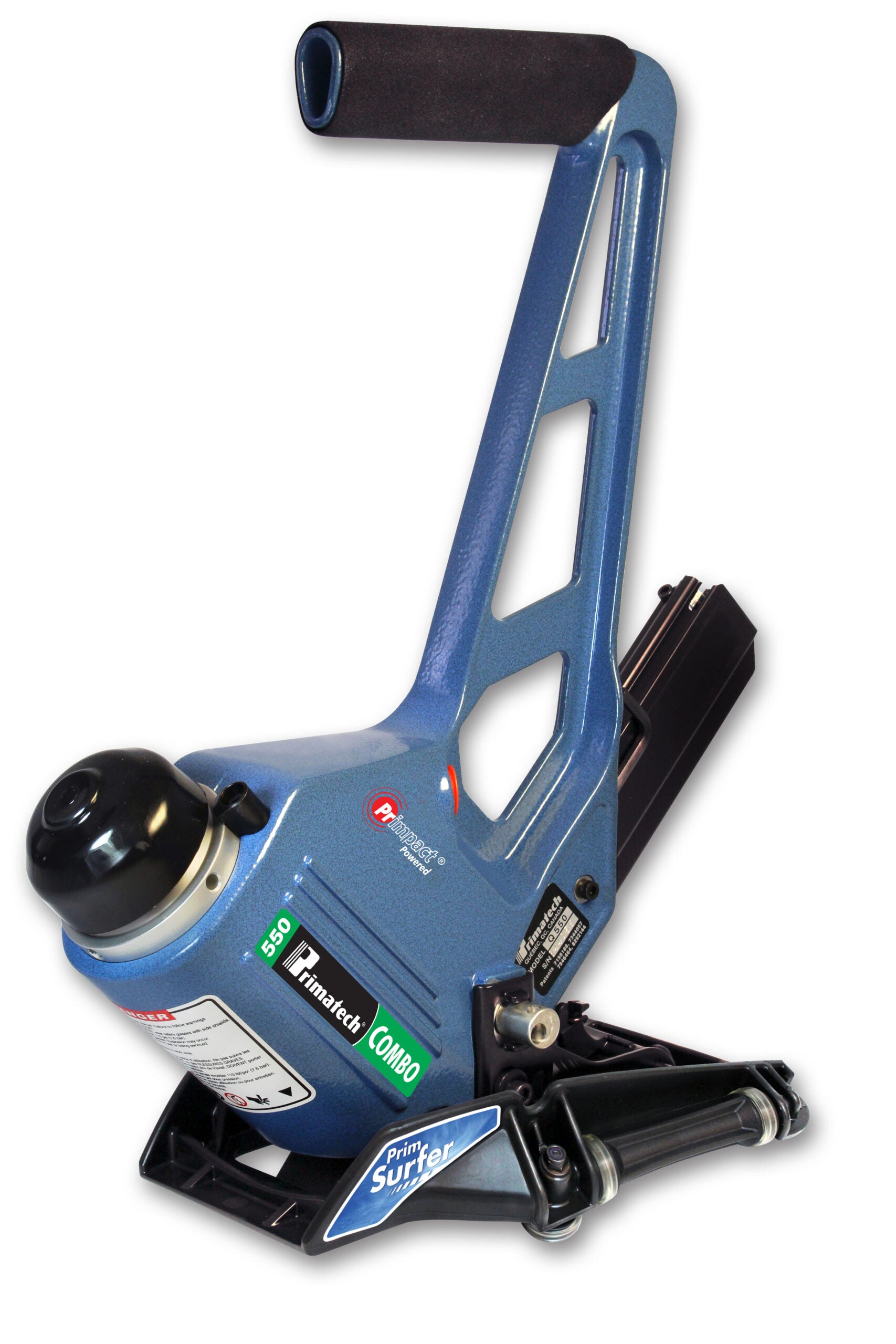

Primatech 550ACR 18GA “L/S” PNEUMATIC ADJUSTABLE BASE COMBO TOOL ON ROLLER

The 550ACR is powered by the PRIMPACT striking module and comes standard  with the PrimSurfer roller base combining undeniable versatility. The cam operated height adjuster allows for precise positioning of the fastener on  products from 3/8″ to 3/4″ and the PrimSurfer fulfills the need for increased Speed and Precision in large surface as well as residential flooring jobs. Its two-way fluid sideshift extends the natural hand movement and matches the agility of the installer, allowing a constant, comfortable posture that prevents “top nailing”. Not having to lift the tool repeatedly eases off the feeling of tension in the user’s arm and back.

Features of the 550ACR Version

The 550AL version features a fully adjustable baseplate providing 3 distinctive advantages:

1. Short nose and compact valve design provide an all around striking surface, enabling the nailing of more boards closer to the end walls.
2. No shims required. The built-in adjuster eliminates the use of shims to match the board thickness.
3. Telegraphy (Dimple Effect) control. The adjustable front block allows for ultra fine positioning, as it corrects the nail penetration to minimize or eliminate surface deformation.

Unrivaled Characteristics

• Can be actuated from any angle
• Light mallet impact will set nail perfectly
• No recoil
• Simplified maintenance
• 3/8’’ to 3/4” (10 to 19mm) flooring
• Dual action and total precision adjustable baseplate

Features of the 550

• High speed action and minimal moving parts result in a powerful yet soft stroke, a shorter air-saving cycle and increased precision.
• Striking system that regulates the depth of penetration independently from the mallet impact.
• Finely threaded screw-in cartridge assembly for precision, easy dismantling and durability.
• Primpact striking module.
• Ergonomically designed for efficient handling.
• Heavy duty cast aluminum body.
• Safety mechanism embedded in baseplate.
• Highest grade steel piston and driving blade will last longer under repeated impacts.
• Low center of gravity and perfect balance provide stability.
• On-site maintenance. An allen wrench is supplied for essential adjustments.
• Comfort grip.
• Wood friendly composite shoe.
• Extruded aluminum nail channel.
• Accepts 18ga L nails 1 ¼” – 1 ½” – 1 ¾”  (32mm – 38mm – 45mm) and 18ga staples 1″ – 1 ¼” – 1 ½” –   (25mm – 32mm – 38mm – ).
